Description

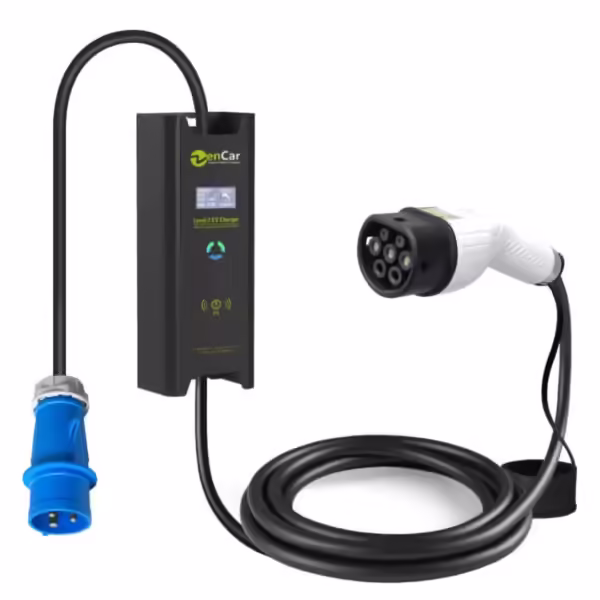

ZENCAR GBT Standard Electric car charger 32A 7kw home portable ev car Charger with Blue CEE 3 pins plug
Product Parameters
|
Electrical Data
|
||||
|
Max. output current
|
32A
|
Input voltage/Output voltage
|
220-240V AC
|
|
|
Input frequency
|
50-60Hz
|
Charging Plug
|
GBT Plug
|
|
|
Max. output power
|
7KW
|
Wall side Plug
|
Blue CEE 3 pins Plug
|
|
|

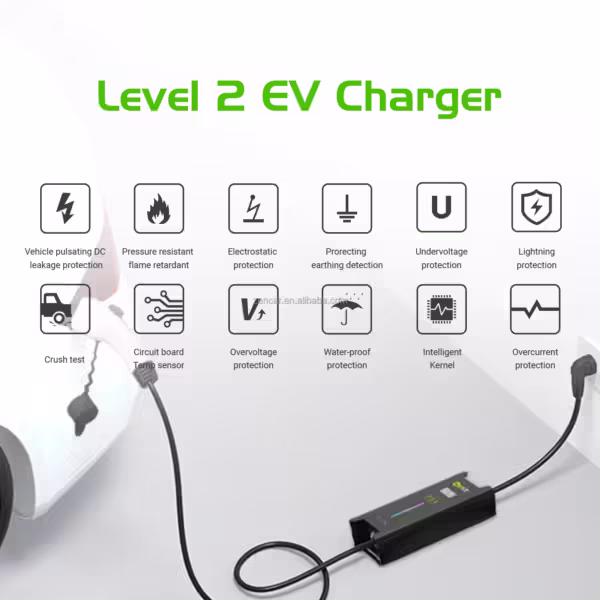

Protection
|
||||
|
Over Voltage Protection
|
Yes
|
Leakage Protection
|
Type A
AC 30mA |
|
|
Under Voltage Protection
|
Yes
|
Over-temp Protection
|
Yes
|
|
|
Over Load Protection
|
Yes
|
Lightning Protection
|
Yes
|
|
|
Short Circuit Protection
|
Yes
|
Flame Retardant
|
Yes
|
|
|
PE Protection
|
Yes
|
Crushing Force
|
No damage under 5000N
|
|
|
Electrostatic Protection
|
Yes
|
Ingress Protection Degree
|
IP65 for Box , IP54 for Plug
|
|
|
Function and Accessory
|
||||
|
Ethernet/WIFI/4G/Bluetooth
|
No
|
LED Indicator light
|
Flash
|
|
|
LCD
|
Yes
|

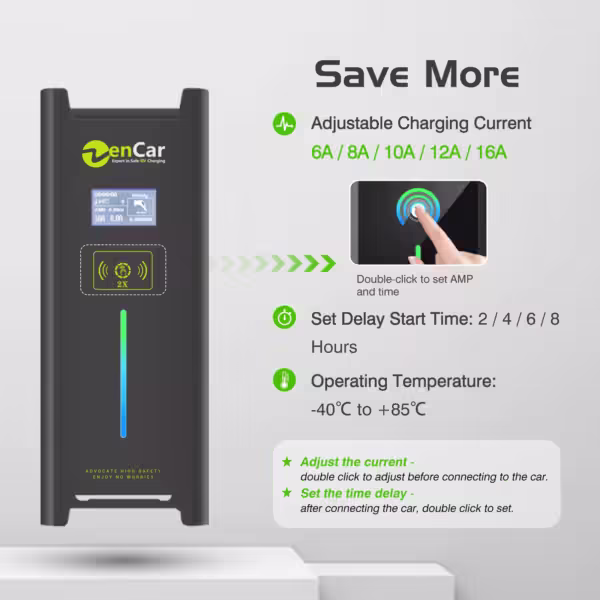

Intelligent Current adjustment
|
Yes , 10A-32A adjustable
|
|
|
RCD
|
Type A
|
Timing Function
|
Yes / By RFID Card
|
|
|
Working environment
|
||||
|
Protection degree
|
IP65 for Box , IP54 for Plug
|
Maximum altitude
|
<2000m
|
|
|
Environment temperature
|
-40℃ ~ +50℃
|
Cooling
|
Natural air cooling
|
|
|
Relative humidity
|
0-95% non-condensing
|
salt mist at +35 °C
|
Pass
|
|
|
Package
|
||||
|
Dimension (W/H/D)
|
410/390/10mm
|
Weight
|
4.5KG
|
|
|
Certification
|
CE
|
Packing Method
|
Neutral Color Box
|
|
